Bee Smart fully Automatic Water Level Controller Auto on, Auto off, 0- 2 HP, 30 A ,Relay ,Model BEEWLC-4 For Mono block & Sump Pumps . with magnetic float sensor.

Description

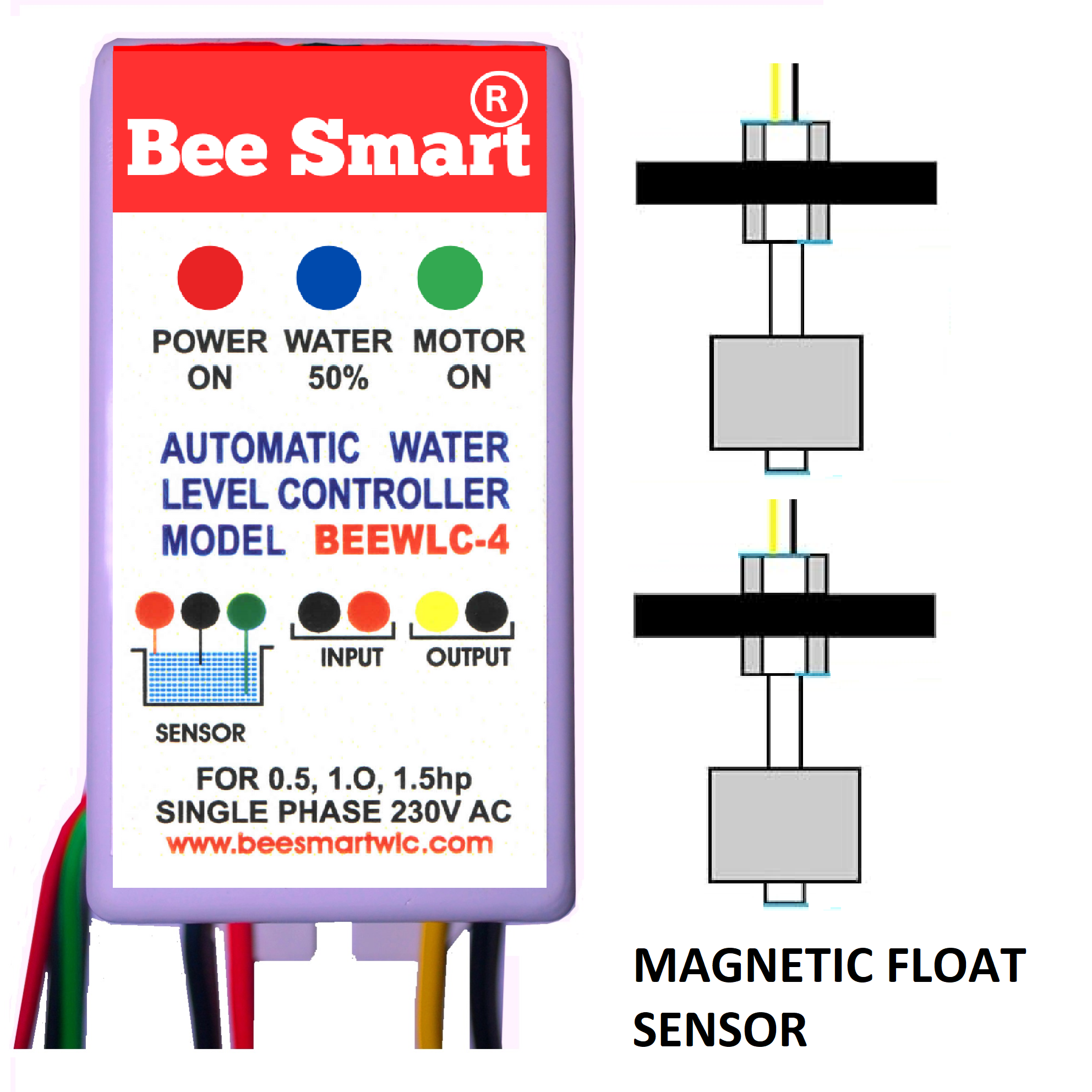

• New BRAND: BEE SMART Full Automatic Water Level controller MODEL: BEEWLC-4. Supply voltage : 190-250 V AC.
• Suitable Up to 0.5 / 1.0/1.5 HP Motor. mono Block pumps, sump pumps, MCB type submersible starter without starting capacitor, home , office , collage , restaurants etc .
• Warranty: 1 Year Replacement . No warranty if ,seal broken , any damage .Replace from our godown .

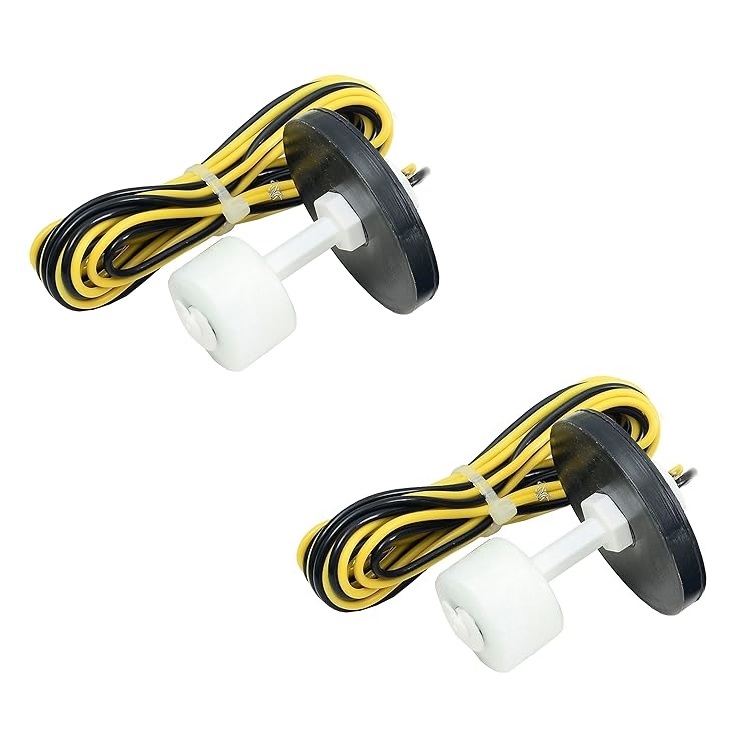

• Package contains: Full Automatic Water level controller 1 unit, and user manual 1 no , 2 no magnetic float sensor rust proof heavy duty .

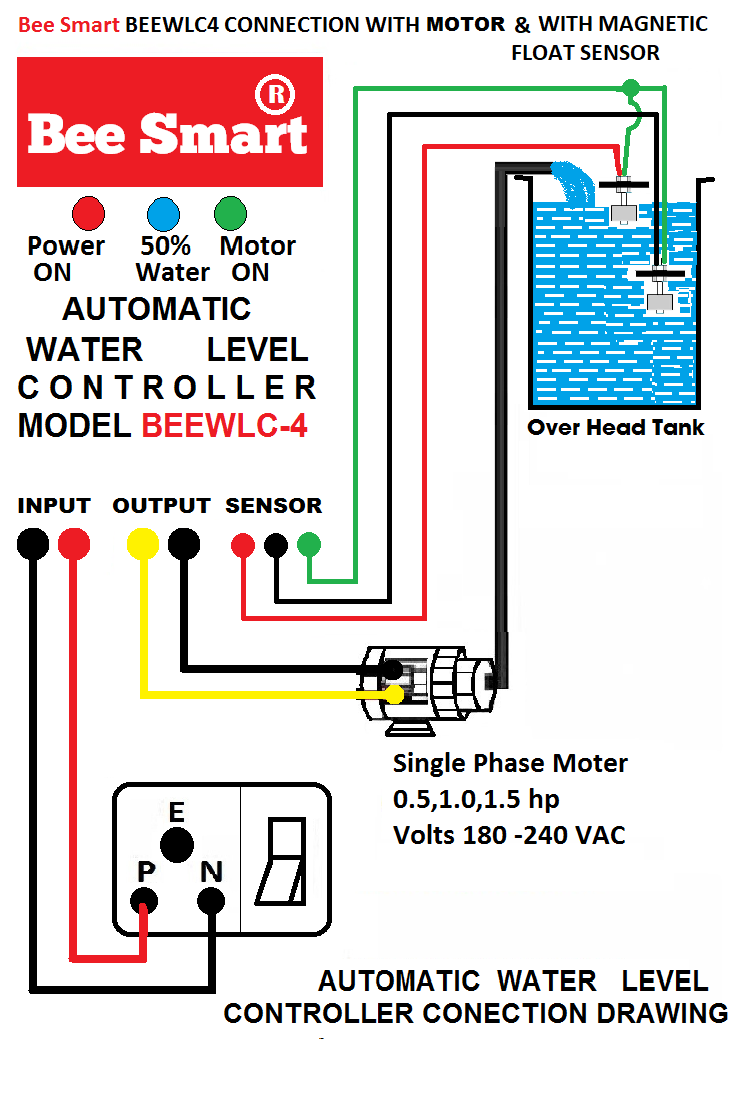

• Installation: Install the water level controller .connect the INPUT OUT PUT . As shown in the diagram out of two magnetic float sensors, 1  sensor   put at middle, and 1 sensor at top level of the tank. For how to install sensor please see VIDEO
• Working When the water level in the tank becomes low, means water get down from middle sensor, motor get switch on automatically. The tank starts filling up. when the water level reaches to the higher level, the top level sensor sense. The motor automatically gets switched off.
• No Man power is required, Manufacture in GURUGRAM Made In India Product. for more information see user manual  or contact us . see other products ,   Why Bee Smart,
